How to set up Plex on a Raspberry Pi

Raspberry Pi Etyntk Lifestyle
Raspberry Pi Etyntk Lifestyle (Image credit: Andrew Myrick / Android Central)

The Raspberry Pi's convenience, versatility, and usefulness simply cannot be understated. With just a few clicks, you can set up just about everything, including the ability to set up Plex on a Raspberry Pi. After you've finished loading up your library of movies, TV shows, and even music, you can then download the Plex app on any of your devices and enjoy your favorite content from anywhere. Today, we're going to show you how you can get everything set up.

Products used in this guide

  • Stream all the things: CanaKit Raspberry Pi 4 8GB Starter Kit
  • Store all the things: Seagate Expansion 6TB External Hard Drive
  • Install the desktop: Raspberry Pi Imager

What you'll need to install Plex on a Raspberry Pi

  • Raspberry Pi 2, 3, or 4: I recommend using the Pi 4 as it comes with built-in Wi-Fi. It has beefier hardware and offers great value. You can choose from 1GB, 2GB, 4GB, or even 8GB RAM configurations, and I have the 8GB option as that gives me more overhead for adding more things later on. If you're getting one for just a Plex server, I'd suggest going with the 2GB RAM variant.
  • Power adapter: Your Raspberry Pi needs an external power source, and you can pick one up on Amazon. The wattage of the wall unit varies based on the Pi model you're picking up. I'm using the Pi 4 here, and it needs a USB-C 15W power adapter.
  • MicroSD card: You'll need a MicroSD card to install Raspbian, the Raspberry Pi's official operating system.
  • Ethernet cable: It's recommended to plug in your Raspberry Pi to your router via an Ethernet cable. The Pi 4 has a built-in Wi-Fi modem, but as you're going to use it as a media server, you may as well plug in.

You can pick up all of the components individually, or you can grab one of the best Raspberry Pi kits, as these will include everything you need. I'm partial to this Canakit Raspberry Pi 4 starter kit as it has everything you need in a single package. That includes a 4GB Raspberry Pi 4, a case, heat sink, fan, 32GB Samsung Evo MicroSD card, power adapter, and an HDMI cable.

In addition to that, you'll need an external HDD that has your movies and music collection. This will come down to personal preference, but you should at the very least make sure that you are using an external drive with USB 3.0. This provides fast transfer speeds and better reliability when plugging in the drive to your Raspberry Pi.

Plex on a Raspberry Pi: Installing a desktop

There are a few different ways that you can set up Plex on a Raspberry Pi, including using the good ole' terminal commands. However, we will take an easier route by installing the Ubuntu Desktop to provide that traditional computer experience. Doing so will make it a bit easier to deal with if problems arise with your Plex server, along with being able to install pretty much anything else that you might want onto your Pi.

To proceed, we first need to install Ubuntu onto the Raspberry Pi itself. And to do that, you'll need to download the Raspberry Pi Imager application, which works with macOS or Windows. Once installed, follow these steps:

  1. Insert your microSD card into your computer.
  2. Open the Raspberry Pi Imager app.
  3. Click the Choose OS button in Pi Imager.Source: Android Central

  1. Select Other general purpose OS.
  2. Select Ubuntu at the top of the list.
  3. Select Ubuntu Desktop from the list.Source: Android Central

  1. After you are taken back to the main Pi Imager screen, click the Choose Storage button.
  2. Select your inserted microSD card from the list.
  3. Click Write.
  4. Confirm that all of the data on the card will be erased.Source: Android Central

This process may take a bit of time, as the Raspberry Pi Imager app installs an entirely new operating system onto your microSD card. From there, just insert your newly-minted microSD card with Ubuntu into your Raspberry Pi and get ready to have some fun.

Plex on a Raspberry Pi: Setting up Plex

Now that your microSD card has an operating system on it, it's time to get things set up with the Pi itself. If this is your first go-'round with Pi, you'll need to make sure you have a USB keyboard and mouse handy for the obvious reasons. Fire up your Raspberry Pi, and follow these steps to get Plex working.

  1. Follow the on-screen prompts to finish the setup of your Ubuntu desktop.
  2. Open the Ubuntu Software store on your Raspberry Pi.
  3. Click the magnifying glass in the top right corner to search.Source: Android Central

  1. Search for Plex Media Server.
  2. Select Plex Media Server from the list of apps that appear.
  3. Click the Install button.
  4. Enter your password if prompted.
  5. Close the Ubuntu Software app.Source: Android Central

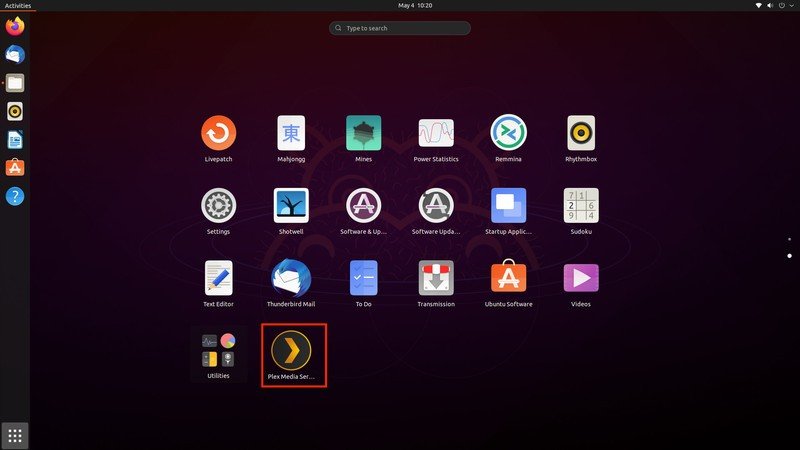

  1. Click the app drawer icon in the bottom right.
  2. Click the Plex Media Server app icon.
  3. A window will appear within the browser of your choice, taking you to the Plex website.
  4. If you have a Plex account already, sign in. If not, you can create an account from here.

After a few moments, you'll be prompted to create your Plex server. Here are the steps to get the server created.

  1. Give your server a name. You can also opt to allow the media to be accessed from Plex even if you aren't home using the Plex app on your laptop, tablet, or Android phone.
  2. Click the Add Library button so that you can add content to your Plex Media Server.
  3. Choose your Library Type, opting for Movies, TV Shows, or other forms of content.Source: Android Central

  1. After making your selection, click Next.
  2. Click Browse for Media Folder in order to add the content you want to access.
  3. Navigate to /home/yourname/Music from the file browser.
  4. Click the Add button.Source: Android Central

  1. Click Add Library.
  2. Once added, click Next.
  3. Click the Done button after you are taken back to the Plex screen.
